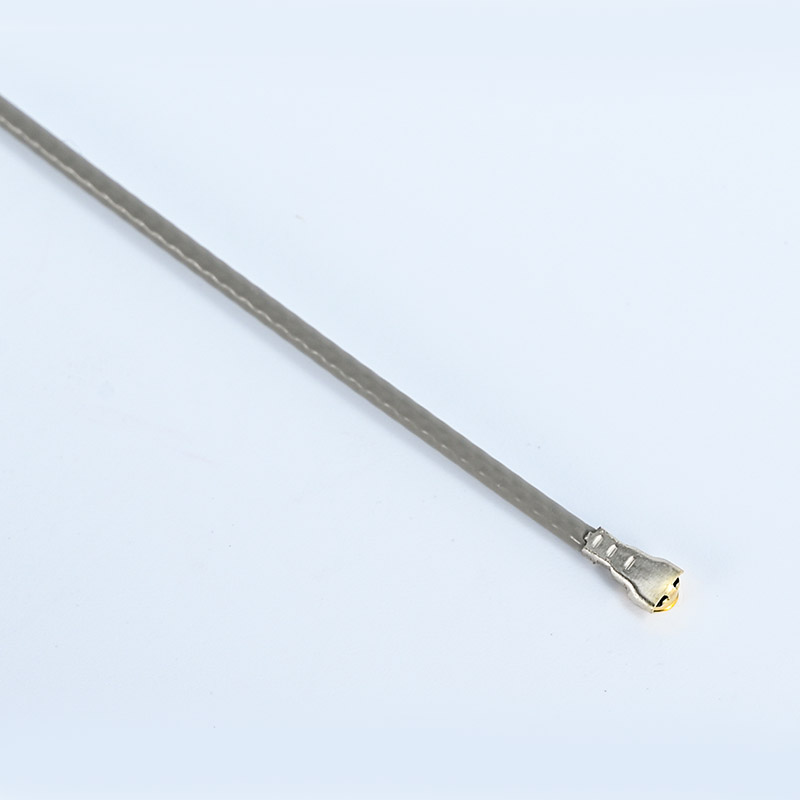

RF Cable Connector
You can rest assured to buy RF Cable Connector from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
RF1.37
Structural Parameters:
|
project |
material |
diameter(mm) |
|
1.inner conductor |
silver plated copper wire |
7X0.102 |
|
2.insulator |
Polyperfluoroethylene propylene(FEP) |
0.88 |
|
3.outer conductor |
silver plated copper wire braid |
Nom.1.10 |
|
4.jacket |
Polyperfluoroethylene propylene(FEP) |
1.37 |
RF Cable Connector Parameters:
|
capacitance(pF/m) |
96 |
|
impedance(ohm) |
50 |
|
Transmission rate(%) |
70 |
|
working frequency(GHz) |
6.0 |
|
Maximum working voltage(Vrms) |
1000 |
Mechanical and Environmental Properties:
|
range of working temperature(℃) |
-55~+200 |
|
Minimum bending radius(mm) |
4 |
|
ROHS environmental |
meets |
Attenuation:
|
frequency(GHz) |
attenuation(dB/m) |
|
1.0 |
1.6 |
|
2.0 |
2.3 |
|
3.0 |
2.9 |
|
4.0 |
3.4 |
|
5.0 |
4.0 |
|
6.0 |
4.3 |
RF1.32DTA
Structural Parameters:
|
project |
material |
diameter(mm) |
|
1.inner conductor |
silver plated copper wire |
7X0.08 |
|
2.insulator |
Polyperfluoroethylene propylene(FEP) |
0.68 |
|
3.outer conductor |
Double layer tinned copper wire braid |
Nom.1.10 |
|
4.jacket |
Polyperfluoroethylene propylene(FEP) |
1.32 |
Electrical Performance Parameters:
|
capacitance(pF/m) |
95.6 |
|
impedance(ohm) |
50 |
|
Transmission rate(%) |
70 |
|
working frequency(GHz) |
6.0 |
|
Maximum working voltage(Vrms) |
1000 |
Mechanical and Environmental Properties:
|
range of working temperature(℃) |
-55~+200 |
|
Minimum bending radius(mm) |
4 |
|
ROHS environmental |
meets |
Attenuation:
|
frequency(GHz) |
attenuation(dB/m) |
|
1.0 |
2.3 |
|
2.0 |
3.1 |
|
3.0 |
3.9 |
|
4.0 |
4.6 |
|
5.0 |
5.1 |
|
6.0 |
5.8 |
RF1.13
Structural Parameters:
|
project |
material |
diameter(mm) |
|
1.inner conductor |
silver plated copper wire |
7X0.08 |
|
2.insulator |
Polyperfluoroethylene propylene(FEP) |
0.68 |
|
3.outer conductor |
Silver plated copper wire braid |
Nom.0.88 |
|
4.jacket |
Polyperfluoroethylene propylene(FEP) |
1.13 |
Electrical Performance Parameters:
|
capacitance(pF/m) |
95.6 |
|
impedance(ohm) |
50 |
|
Transmission rate(%) |
70 |
|
working frequency(GHz) |
6.0 |
|
Maximum working voltage(Vrms) |
1000 |
Mechanical and Environmental Properties:
|
range of working temperature(℃) |
-55~+200 |
|
Minimum bending radius(mm) |
4 |
|
ROHS environmental |
meets |
Attenuation:
|
frequency(GHz) |
attenuation(dB/m) |
|
1.0 |
2.3 |
|
2.0 |
3.1 |
|
3.0 |
3.9 |
|
4.0 |
4.6 |
|
5.0 |
5.1 |
|
6.0 |
5.8 |
RF0.98
Structural Parameters:
|
project |
material |
diameter(mm) |
|
1.inner conductor |
silver plated copper wire |
7X0.064 |
|
2.insulator |
Polyperfluoroethylene propylene(FEP) |
0.53 |
|
3.outer conductor |
Silver plated copper wire braid |
Nom.0.75 |
|
4.jacket |
Polyperfluoroethylene propylene(FEP) |
0.98 |
Electrical Performance Parameters:
|
capacitance(pF/m) |
100 |
|
impedance(ohm) |
50 |
|
Transmission rate(%) |
70 |
|
working frequency(GHz) |
6.0 |
|
Maximum working voltage(Vrms) |
1000 |
Mechanical and Environmental Properties:
|
range of working temperature(℃) |
-55~+200 |
|
Minimum bending radius(mm) |
3 |
|
ROHS environmental |
meets |
Attenuation:
|
frequency(GHz) |
attenuation(dB/m) |
|
1.0 |
2.8 |
|
2.0 |
4.1 |
|
3.0 |
5.3 |
|
4.0 |
6.4 |
|
5.0 |
7.3 |
|
6.0 |
8.2 |
RF0.38
Structural Parameters:
|
project |
material |
diameter(mm) |
|
1.inner conductor |
silver plated copper wire |
7X0.03 |
|
2.insulator |
PFA |
0.25 |
|
3.outer conductor |
Silver plated copper wire braid |
Nom.0.32 |
|
4.jacket |
PFA |
0.38 |
Electrical Performance Parameters:
|
capacitance(pF/m) |
100 |
|
impedance(ohm) |
50 |
|
Transmission rate(%) |
70 |
|
working frequency(GHz) |
1.0 |
|
Maximum working voltage(Vrms) |
50 |
Mechanical and Environmental Properties:
|
range of working temperature(℃) |
-55~+200 |
|
ROHS environmental |
meets |
Attenuation:
|
frequency(MHz) |
attenuation(dB/m) |
|
10 |
0.6 |
|
1000 |
6.0 |
Hot Tags: RF Cable Connector, Manufacturers, Suppliers, Factory, Wholesale, China, Made in China, Price, 3C/UL, Customized
