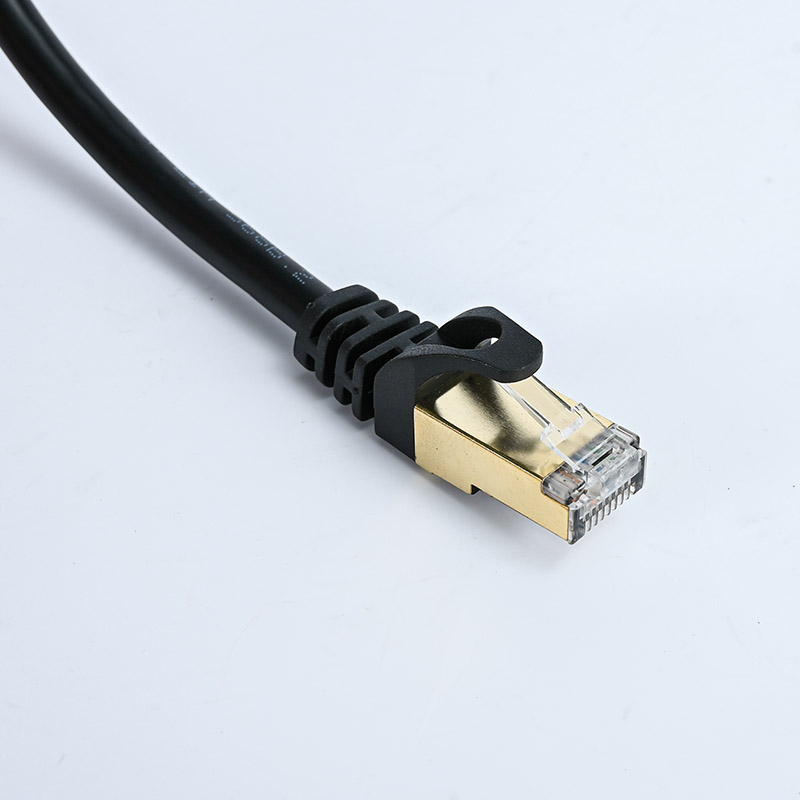

CAT6A Flat Network Connecter

As a professional Indoor Large Logarithmic Cable HYVCAT6A Flat Network Connecter manufacture, you can rest assured to buy CAT6A Flat Network Connecter from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

CAT6A Flat Network Connecter Description:

Rated temperature: 70℃

Reference standard: ANSI/EIA/TIA-568c&YD/T1019&IEC61156&UL444

Single bare copper conductor

Color-coded PE insulation

Packing: roll packing or reel packing

Minimum static bending diameter: 8 times the outer diameter of the cable

Product Structure:

Core conductor: 23AWG single bare copper wire

Insulation: PE;

Outer Diameter: 1.35mm (reference)

The core wire is twisted, the colors are: white/blue, white/orange, white/green, white/zongzi

Cabling: four pairs of core wires twisted together

Outer cover: PVC or LSZH or PE

Diameter: 7.50mm reference

Physical Properties:

Minimum static bending diameter: 8 times the outer diameter of the cable

Tear rope tension: >200N

Electrical Characteristics:

Single Conductor DC Resistance(max)	9.38 Ω/100m
Insulation ignition test(DC)	2.5 KV
Delay difference(max)	45 ns/100m
Characteristic impedance	100±15 Ω
combustion test	vertical combustion

Transmission characteristics:

frequency MHz	ATT db/10min	RL db, min	NEXT db, min	PSNEXT db, min	ELFEXT db, min	PSELFEXT db, min	PD ns/100m
4	3.8	23.0	65.3	63.3	55.8	52.8	552.0
8	5.3	24.5	60.8	58.8	49.7	46.7	546.7
10	5.9	25.0	59.3	57.3	47.8	44.8	545.4
16	7.5	25.0	56.2	54.2	43.7	40.7	543.0
20	8.4	25.0	54.8	52.8	41.8	38.8	542.0
25	9.4	24.3	53.3	51.3	39.8	36.8	541.2
31.25	10.5	23.6	51.9	49.9	37.9	34.9	540.4
62.5	15.0	21.5	47.4	45.4	31.9	28.9	538.6
100	19.1	20.1	44.3	42.3	27.8	24.8	537.6
200	27.6	18.0	39.8	37.8	21.8	18.8	536.5
250	31.1	17.3	38.3	36.3	19.8	16.8	536.3
300	34.3	16.8	37.1	35.1	18.3	15.3	536.1
400	40.1	15.9	35.3	33.3	15.8	12.8	535.8
500	45.3	15.2	33.8	31.8	13.8	10.8	535.6
